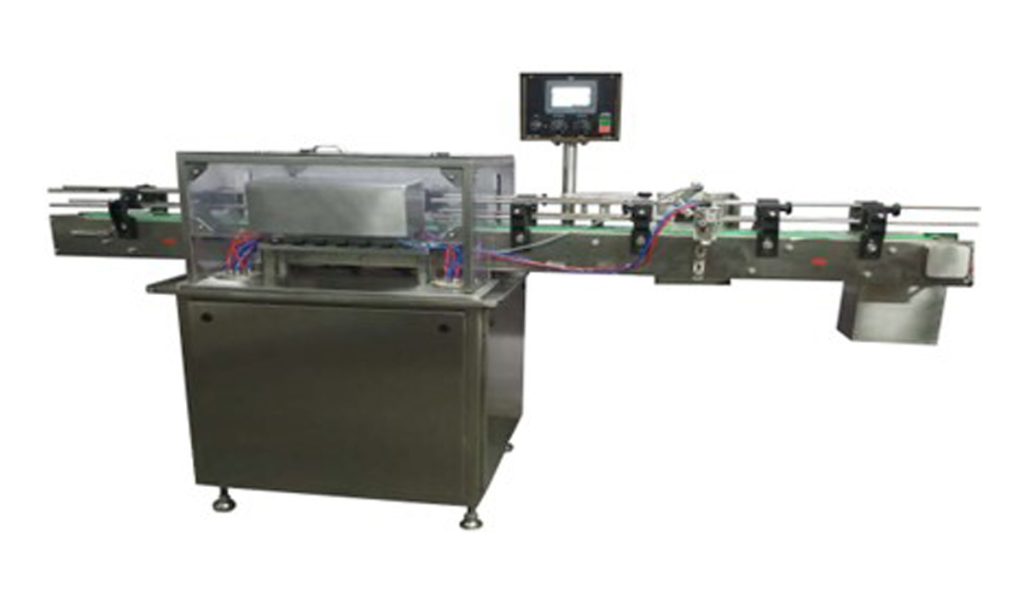

Automatic Leak Test Machine with Rejection Unit
Specifications
| MOC | SS 304 |
| Machine Capacity | 200ml |
| Machine Speed | Upto 60 Bottle/Minute (3600 Bottle/Hour ) |
| Machine Speed Conotrol | By AC Frequency Drive |
| Conveyor Width | 90mm SS Slat |
| Conveyor Length | 6 1/2 Feet |
| Conveyor Geared Motor | 0.5 HP Bonfiglioli Make |
| Motor for Star Wheel | Panasonic Make |
| PLC Based Control Panel | Touch Screen Diplay (4.3” HMI) Kinco/Delta Make |
| Pneumatic Air | 4 Kgs/Cm.Sq. |
| Input Electrical Supply | Single Phase, 230 Voltage AC, 50 Hz |
| Machine Dimension | 91” L x 30” W x 53” H |
| Machine Weight | Approx. 450 Kgs. |
| Pneumatic Stopper | |
| Bottle Counting Sensor | |
| Pneumatic Air Cylinder for Bottle Pressing Unit | |
| Bottle Rejection Unit | |
| Bottle Rejection Counting Display in Operating Panel | |
| Bottle Counting Sensor | |
| Rejection Bottle Detecting Sensor | |
| Star Wheel to maintain the distance between the bottle | |
| Bin for Rejected Bottle | |
| Acrylic Cabinet for Machine | |
| Drainage tray below the Conveyor | |
